UL 2525 Listed Area of Refuge Systems
What are UL 2525 Listed Area of Refuge Systems?
UL 2525 Listed systems are distinct from non-listed Area of Refuge systems. UL 2525 is a performance standard that expands specificity over NFPA 72 (2022) by defining operational, acoustic, environmental, and electrical performance.
From stairway landings to elevator lobbies, these systems ensure that all building occupants have a way to call for help and be rescued quickly, even in the most critical moments. Individuals with mobility challenges or those needing evacuation assistance can use these systems to communicate with emergency responders when they reach designated safe areas.
Why Honeywell UL 2525 Listed Area of Refuge Systems?
Ensuring Reliable Two-Way Communications During Critical Moments
When emergencies happen, reliable communication is essential for getting help to those who need it most. Our NFPA 72 compliant and UL 2525 Listed Area of Refuge (AOR) systems provide two-way communications that comply with the highest safety standards.
| Key Product Features | Benefits |
| 1. Fully compliant with NFPA 72 (2022) §24.10, IBC (2024) §1009.8, ICC A117.1 (2017) Ch. 7, and ADAAG (2010) Ch. 7 | 1. Fully meet building code and life safety standard requirements for Area of Refuge projects |
| 2. Supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail—alerts by relay output to an addressable fire panel, LED, and sounder | 2. Supervises the integrity of the system, fulfills code requirements, and facilitates annual testing requirement |
| 3. Supports up to two (2) Sub-Command Units for additional on-premise answering points | 3. Provide flexibility for on-site authorized personnel and first responders |
| 4. Multiple calls are placed in queue on a “first-in, first-out (FIFO)” basis | 4. Facilitates management of calls for assistance from Areas of Refuge |
| 5. Built-in battery backup (24-hours non-active, 4-hours active) | 5. Allows this critical system to operate during a catastrophic event while meeting UL 2525 and NFPA 72 (2022) requirements |
| 6. Call Stations receive power from the command unit | 6. Eliminates need to provide power at each Call Station location |
UL 2525 Listed Area of Refuge System for Up to 10 Stations

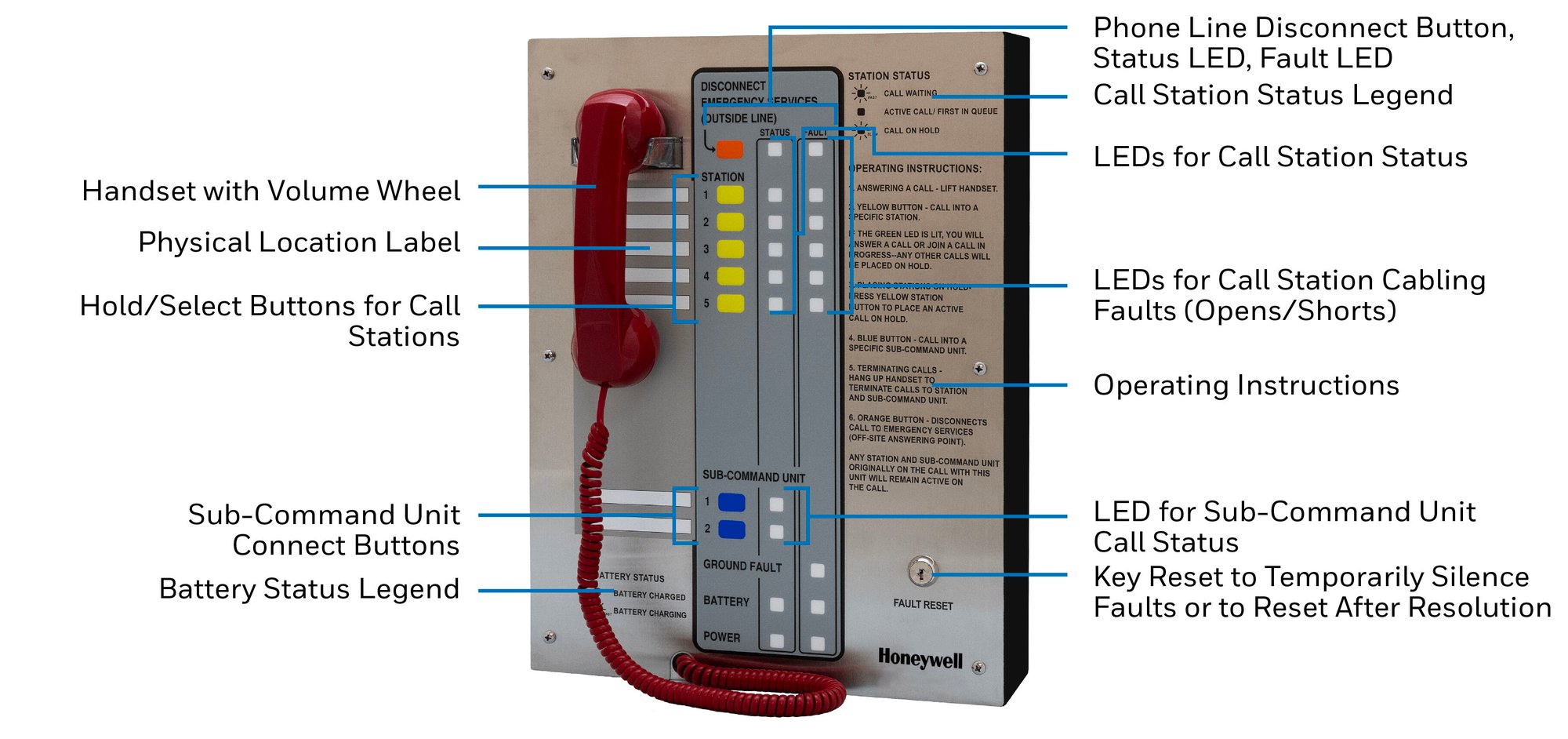

UL 2525 Listed Command Unit
Fully integrated analog Command Units accommodate up to 5 or 10 ADA-compliant Area of Refuge Call Stations. The Command Unit provides both audible and visual indicators for an incoming call—LED lights indicated the calling location.

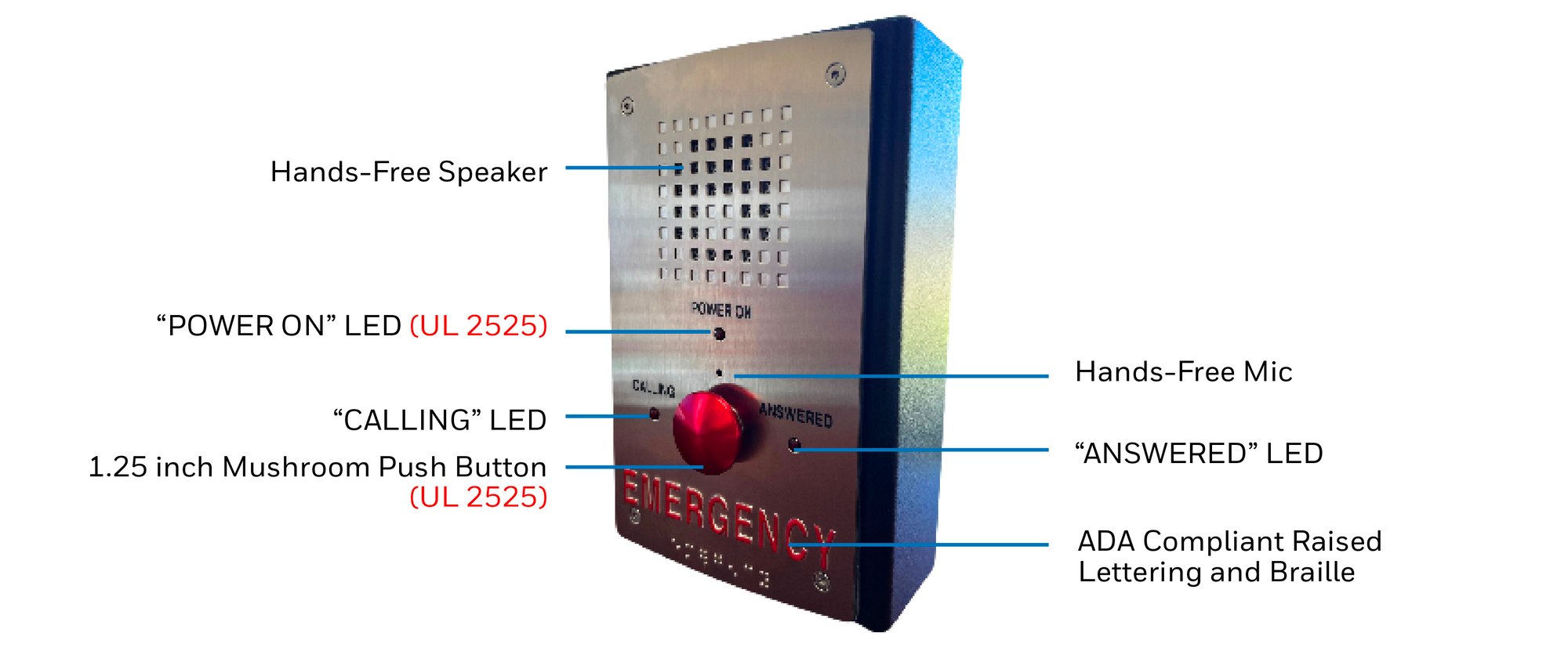

UL 2525 Listed Call Station
Hands-free, ADA-compliance two-way emergency communication endpoint for calling a constantly attended Command Unit or to an approved off-site answering point.

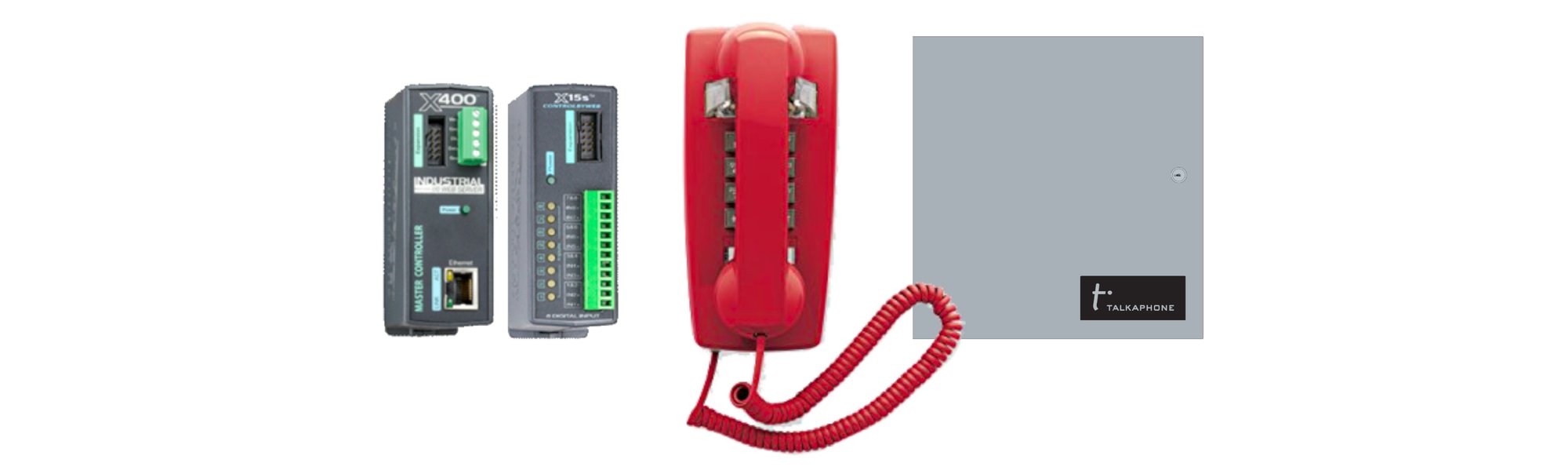

Accessories
Area of Refuge (AOR) systems support accessories ranging from flush mounts to sub-command units to a network-based event supervisor.
UL 2525: What is Required?
| Call Station | Command Unit |
| ID calling location though a pre-recorded voice message plays at start of call | ID calling location through visual indicators and text labels with location/floor |
| Speaker sound level no less than 70 dB at 1.0 m | Supervision
|
| “POWER ON” LED | Time to alert – trouble signals and restoration to normal shall be annunciated within 200 sec |
| LEDs for CALL PLACED and ANSWERED | Difference in tones between emergency and supervisory/trouble signals |
| Mushroom button: 1.25-inch diameter | Temporarily silence audible supervisory/trouble signal for 24 hours – if not corrected, audible signal will resume |
| Battery Backup (24 hours non-active, 4 hours active) |
Questions?
We’re here to help. Our team can work with you to build the customized solution for your specific Area of Refuge needs.
